| Item | Specification |
| Display mode | Transmissive TFT |
| Part NO. | RT32QV002A |
| Resolution | 240(RGB)*320 |

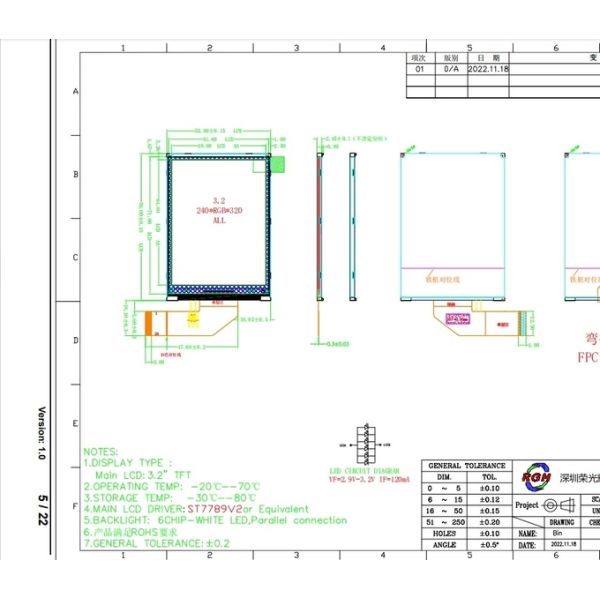

| Outline size | 53.60(H) X 76(W) X2.45(T) |
| Active area | 48.60(W) X64.80 (H) |
| View direction | ALL o’clock |
| Piexl pitch | 240X(RGB)X320 |
| Interface | MCU |
| Backlight | 6LEDS |
| Surface luminance | 420cd/m2 |
| Driver IC | ST7789V |
| Logic voltage | 2.5V-3.3V |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Weight | TBD |
| NO. | Symbol | Level | Function |
| 1 | LEDA | | LED,anode |
| 2-3 | LEDK | | LED,cathode |
| 4 | TE | | TE |
| 5 | RESET | | This signal will reset the device and it must be
applied to properly |
| 6-13 | DB7-DB0 | | data bus. |
| 14 | GND | | Ground |
| 15 | SDA | | Ground(0V)serial portdata input end |
| 16 | RS/SCL | | -Display data/command selection pin in parallel
interface |
| 17 | RD | | -Read enable in 8080 MCU parallel interface |
| 18 | WR/A0 | | -Write enable in MCU parallel interface |
| 19 | CS | | -Chip selection pin |
| 20 | GND | | Ground |
| 21 | VCC | | system voltage |
| 22 | IOVCC | | system voltage |
| 23 | IM2/IM1 | | |
| 24 | GND | | Ground |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
